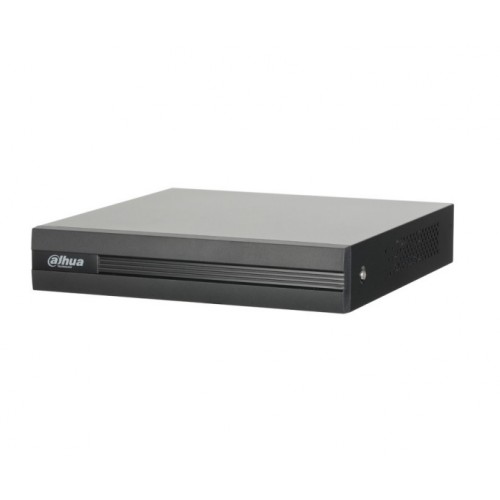

Dahua XVR1A08 8 Channel Penta-brid XVR

Dahua XVR1A08 8 Channel Penta-brid XVR

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 8CH: 8+2, each channel up to 5MP
HDCVI Camera: 1080P@25/30fps, 720P@25/30fps
AHD Camera: 1080P@25/30, 720P@25/30fps
TVI Camera: 1080P@25/30, 720P@25/30fps
CVBS Camera: PAL/NTSC
Two-Way Talk Reuse audio in/out, RCA
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-Screen Display When IP extension mode not enabled:
8CH: 1/4/8/9
When IP extension mode enabled:
8CH: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream- 8CH: the 1st channel 1080N/ 720P (1~25/30fps), others 1080N (1~12fps)/ 720P(1~15fps); 960H/ D1/ HD1/ BCIF/ CIF/ QCIF (1~25/30fps)
Sub steram- CIF/QCIF (1~7fps)
Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection And Alarm
Trigger Event Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback And Backup
Sync Playback 8CH: 1/4/9
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third Party Support
Third Party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface 1 RJ-45 Port (100M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)
Maximum User Access
128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Storage
Internal HDD 1 SATA Port, up to 6TB capacity
Auxiliary Interface
USB
2 USB 2.0
Power
Power Supply DC12V/1.5A
Power Consumption <10W
Component Environment
Operational Conditions -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Net Weight 0.55kg (1.2lb)
Gross Weight 1kg (2.2lb)
